F-8017
KINETIC DISPLAYS
The ceiling is alive. Data made physical, above the crowd.
KINETIC CEILING · 64 MOTOR UNITS · DMX CHOREOGRAPHY · BEAT SYNCED

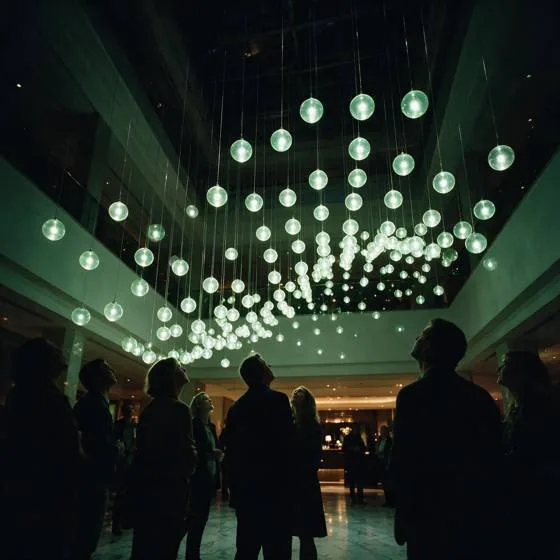

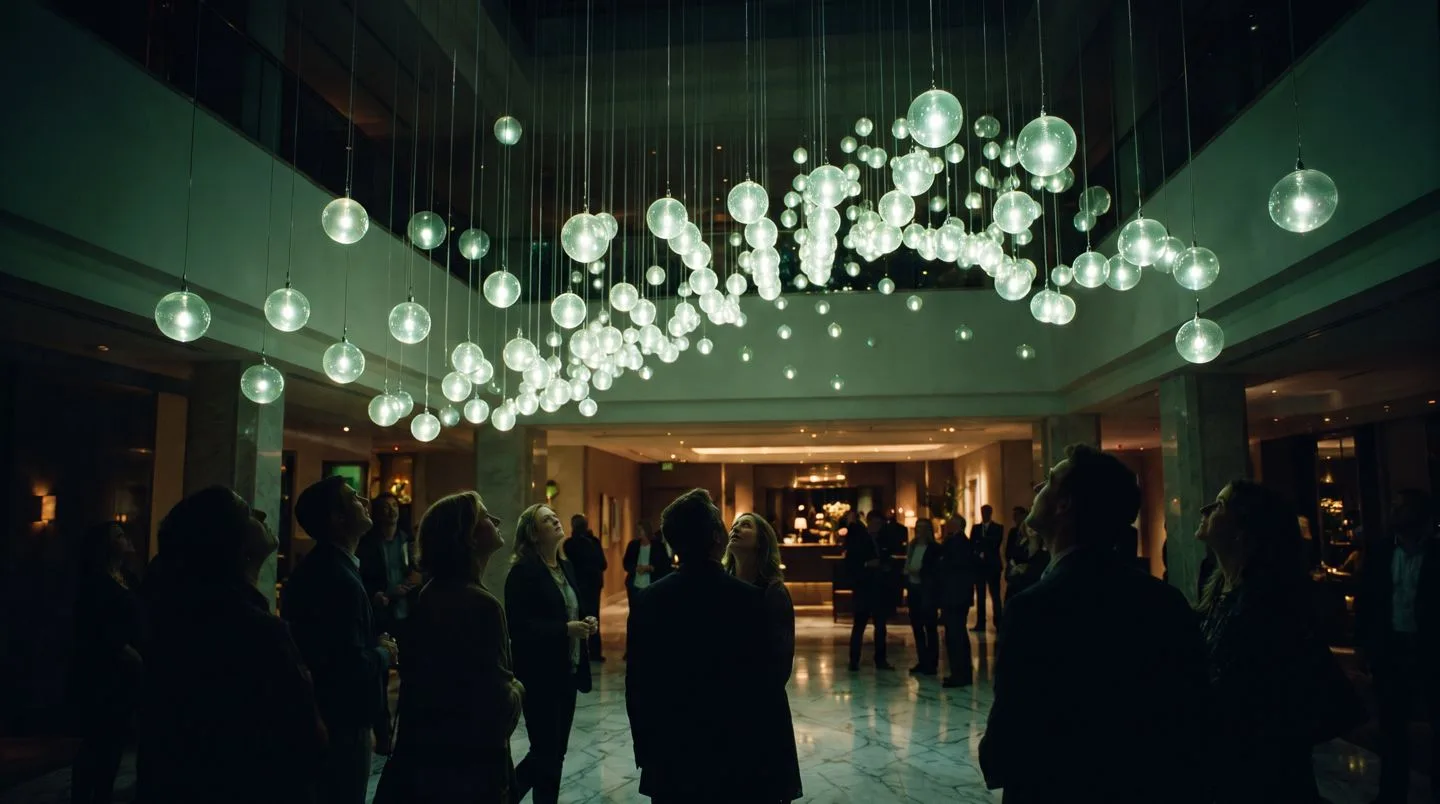

Hundreds of suspended elements move in choreographed waves above the crowd. The ceiling becomes a living surface. Movement follows voice, music or data. The visitor looks up and sees information made physical.
Sixty-four winches move as one organism, wave by wave.
Tap tempo or audio input. The ceiling dances on the grid.
Sales curves, crowd counts, live metrics, rendered in altitude.
Every motor monitored. Weight budget engineered with headroom.
This is the grid, on your screen. Drag across the ceiling to paint waves by hand, switch choreographies, tap the tempo button to the beat, and flip between 3D and plan view.
The PULSE grid: truss layer, sixty-four winch units, the sphere field below and the DMX chain that choreographs gravity without a sound.
Suspension grid, motor unit section, DMX chain and load topology, drawn for the contractor. Sheet PU-EX-01, issued for client review.
Stepper winches, lit sphere elements, DMX control and load monitoring, engineered by FAIM into a ceiling that moves like weather and holds like rigging.
Sixty-four stepper winches, 0 to 2,400 mm of silent travel.
Each sphere carries addressable LED, choreographed with height.
DMX 512 control with 64 channels used, headroom by design.
Load monitoring per motor, rigging certified per venue.
Kinetic work owns the one direction nobody is defending: up.
ARRIVE
ENGAGE
PLAY
CONVERTA ripple crosses the ceiling. Conversations pause mid-word.
The crowd drifts under the grid. Phones tilt skyward.
A guest paints a wave by hand. The ceiling obeys.
The choreography changes hourly. People come back to check.
Demonstration data from a reference atrium installation. Five choreographies across one launch week, ranked by crowd dwell beneath the grid.
A shuffled wall of moments from the work: ceremonies, walls, badges, worlds. Click any tile to see it full screen.
09 / CLOSE
F-8017 PULSE. Engineered with care by FAIM, Future AI Media.
Turnkey technology, event ready. Your logo, your colours, standard decals. Suited to rapid deployment and secondary activation zones.
Bespoke narrative integration: custom 3D assets, tailored UI and UX, altered interaction loops, custom fabricated enclosures. Suited to title sponsors and mega event centrepieces.
