FAIM F-6019 3D HOLOGRAM FAN ARRAYS

BLADE
FAN ARRAYS

Light from nothing. Floating visuals painted in open air.

POV LED · OPEN AIR · TILES TO WALL SCALE · PROXIMITY REACTIVE

Spin The Blades
OPEN AIR · NO SCREEN 3×3 WALL ARRAYS <1MS FRAME SYNC LIVE PROXIMITY REACT
LIVE POV UNIT · BRAND BLOOM MODEF-6019 · 3D HOLOGRAM FAN ARRAYS
01 / THE CONCEPT

NO SCREEN.
NO ENCLOSURE.

Blades of light spin at speed, painting a three-dimensional image in open air. Arrays tile together for wall-scale displays. Content reacts to proximity, time of day or live data. The visitor walks past and a floating product appears from nothing.

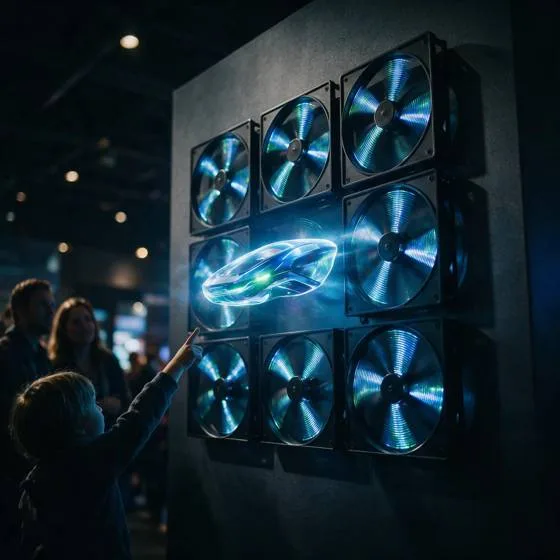

FIELD REFERENCE · 3D HOLOGRAM FAN ARRAYS · ON LOCATION

Persistence

LED blades spin faster than the eye. The image simply hangs in air.

Tileable

Nine units become one wall. Frame sync holds under a millisecond.

Reactive

Proximity sensors wake the content as visitors approach.

Scheduled

Content rotates by schedule, daypart or live data feed.

02 / INTERACTIVE DEMO

NOW,
PAINT THE AIR.

This is the fan, on your screen. Switch content presets, tile nine units into a wall array, slide the virtual visitor closer and watch the content react.

SWITCH PRESETS · SLIDE THE VISITOR CLOSER
Visitor
Array Telemetry
THIS SESSION · REAL TIME
0IMPRESSIONS
0PROXIMITY TRIGGERS
0:00UPTIME
03 / BLACKBOX · TACTICAL SYSTEMS VIEW

THE FAN GRID,
FROZEN MID-SPIN.

The BLADE array: a 3 by 3 grid of POV rotors, the sync backbone and the controller that carves floating images out of thin air at 700 RPM.

BLACKBOX · F-6019 · DRAG TO ORBIT
TAP THE GLOWING NODES FOR SPEC CARDS
04 / THE BLUEPRINT

ONE FAN, DRAWN.
NINE, TILED.

Fan cross-section, wall array grid, power daisy-chain and content topology, drawn for the contractor. Sheet BL-EX-01, issued for client review.

ABCDEF ABCDEF 1234 1234 FAIM // ENGINEERING RELEASE F-6019 BLADE · HOLOGRAPHIC FAN ARRAY SYSTEM SHEET BL-EX-01 · REV A PROPRIETARY · DO NOT SCALE · CORE ENGINE OMITTED BY DESIGN FAN UNIT · CROSS SECTION MOTOR LED STRIP PER BLADE · NOTE 1 BLADE Ø ≈ 650 · NOTE 2 Ø ≈ 650 1 WALL ARRAY · 3 × 3 MOUNTING GRID POWER DAISY CHAIN · NOTE 4 OVERLAP TILING ≈ 40 MM · NOTE 3 2 CONTENT SRVPROXIMITYSCHEDULERSYNC-01FANS ×9SAFETY MESHREPORT FRAME SYNC ACROSS ARRAY UNDER 1 MS · NOTE 5 NOTES 1. LED STRIP PER BLADE. PIXEL MAP CALIBRATED AT COMMISSIONING. 2. BLADE DIAMETER ≈ 650 MM REFERENCE. LARGER UNITS PER SURVEY. 3. ARRAY TILES WITH ≈ 40 MM OVERLAP FOR SEAMLESS IMAGE. 4. POWER DAISY-CHAINED PER ROW. DATA HOMERUN TO SYNC UNIT. 5. FRAME SYNC ACROSS ARRAY HELD UNDER 1 MS. 6. MOUNTING SUBSTRATE AND POWER BY OTHERS. FAIM BALANCES AND TESTS. 7. DO NOT SCALE FROM THIS DRAWING. SITE SURVEY GOVERNS. FAIM FUTURE AI MEDIA · MANAMA PRODUCT F-6019 · BLADE HOLOGRAPHIC FAN ARRAY SERIES FAIM EXPERIENCE LIBRARY DRAWN J. THURUTHEL DATE 13 JUL 2026 SCALE NTS SHEET BL-EX-01 · REV A STATUS CLIENT REVIEW REV A DESCRIPTION ISSUED FOR CLIENT REVIEW DATE 13.07.26 CONFIDENTIAL · FAIM PROPRIETARY EXPERIENCE SYSTEM · REPRODUCTION PROHIBITED
SHEET BL-EX-01 · UNIT SECTION · ARRAY GRID · SIGNALFAIM STAMPED · CONFIDENTIAL
05 / THE INTELLIGENCE LAYER

SPINNING FAST.
THINKING FASTER.

Balanced blade units, per-blade LED strips, a sync controller and proximity sensing, engineered by FAIM into arrays that paint stable images in open air.

It Spins

Balanced rotors hold image-stable speed with silent bearings.

It Syncs

A sync controller locks every fan in the array under one millisecond.

It Senses

Proximity sensing scales content with the visitor distance.

It Reports

Impressions, triggers and uptime delivered after the event.

FAIM Delivers
  • Content design and conversion for POV display
  • Fan units, mounting grid and sync configuration
  • Proximity sensing and reactive content logic
  • Content scheduler, live dashboard and post-event report
  • Commissioning, balancing, training and event support
By Others
  • Wall structure and mounting substrate
  • Venue power and rigging
  • Safety barriers where required by venue
OPTIONAL ENHANCEMENTS · Curved arrays · Live data feeds · Ambient light mode · Commercial details are provided separately.
HARDWARE MACROS · THE COMPONENTS UP CLOSE
LED MICRO PIXEL MATRIX · P1.9 · 3840 HZ REFRESH
IR EMITTER ARRAY · 30 MS TOUCH TO LIGHT
OPTICAL LENS STACK · 20K LUMEN THROW
STEPPER WINCH UNIT · 2400 MM SILENT TRAVEL
FIBER SIGNAL LOOM · SUB 1 MS SYNC
SMART BADGE MODULE · 6 S PRINT CYCLE
06 / THE VISITOR EXPERIENCE

WALK PAST.
IT APPEARS.

The strongest moment is the first one: something floating where nothing should be.

01ARRIVE
02ENGAGE
03PLAY
04CONVERT
STEP 01

Notice

A glow forms in mid-air. The visitor slows without deciding to.

STEP 02

Approach

Proximity wakes the content. The floating product turns to greet.

STEP 03

React

Closer still, the image blooms: detail, motion, message.

STEP 04

Count

Every impression and proximity trigger lands in the log.

07 / ENGAGEMENT ANALYTICS

FLOATING PIXELS,
GROUNDED NUMBERS.

Demonstration data from a reference mall activation. 48,200 content impressions across one weekend, ranked by the content that earned them.

Content ImpressionsACTIVATION DEMO
Weekend ReachTWO DAYS
0IMPRESSIONS
PROXIMITY TRIGGERS · 3,940 ARRAY UPTIME · 99.7% PEAK HOUR · 18:00
08 / THE WALL · FIELD GALLERY

EVERY FLOOR,
ONE WALL.

A shuffled wall of moments from the work: ceremonies, walls, badges, worlds. Click any tile to see it full screen.

09 / CLOSE

LIGHT,
FROM NOTHING.

F-6019 BLADE. Engineered with care by FAIM, Future AI Media.
